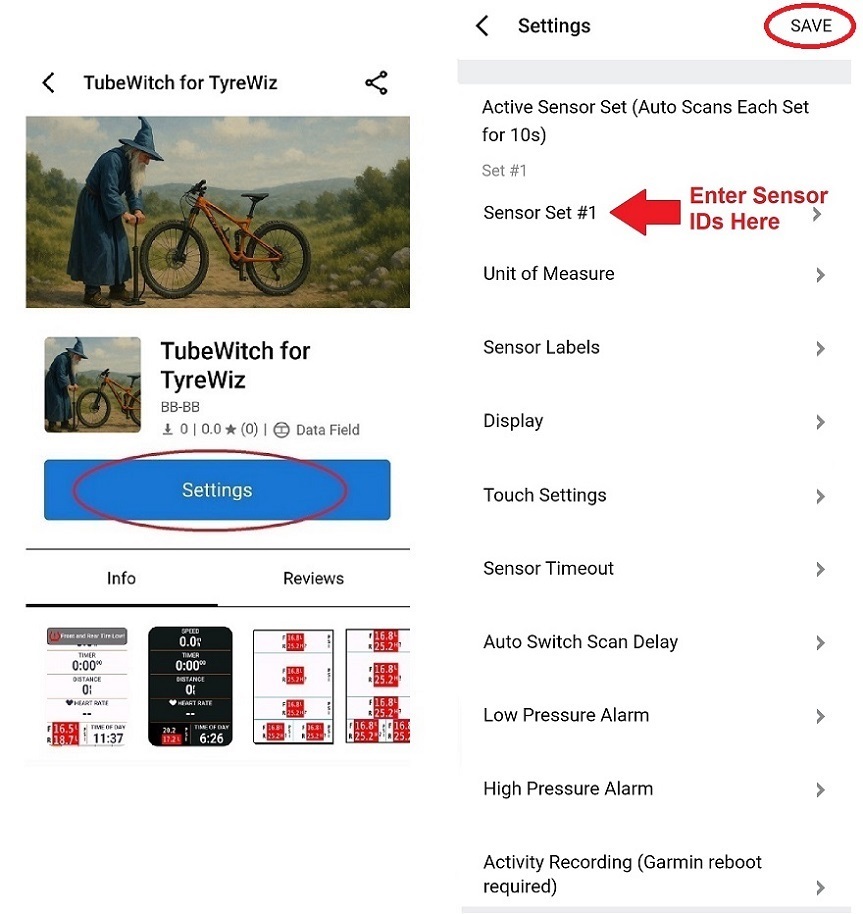

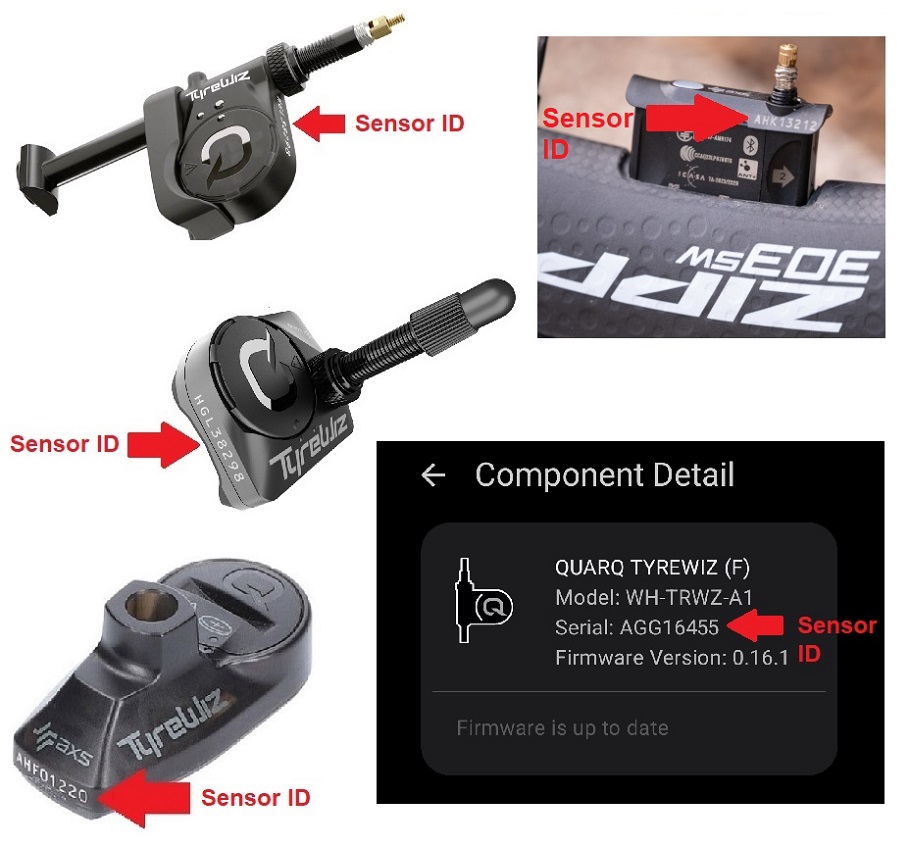

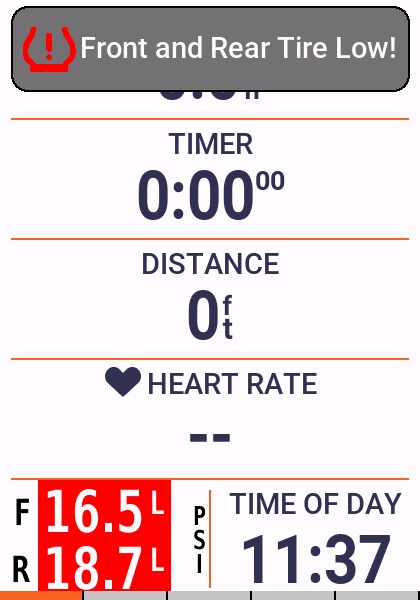

TubeWitch for TyreWiz is a FREE Garmin Data Field that brings TyreWiz, AIRMAX and Zipp wheel tire pressure sensor data to the Garmin Edge devices and watches. It offers extensive customization, with flexible display and label options, as well as configurable audible/pop up/vibration pressure alerts designed to prevent nuisance duplicate alarms. Troubleshooting: TubeWitch.com ****ALERT: SAVING SETTINGS WITH THE CONNECT IQ MOBILE APP IS AFFECTED BY A BUG IN THE GARMIN IQ SYSTEM. MAKE SURE THE TUBEWITCH DATA FIELD IS VISIBLE ON YOUR GARMIN DEVICE WHEN CHANGING SETTINGS. IF SETTINGS STILL DO NOT SAVE, TRY USING GARMIN EXPRESS. **** Required: Use the Garmin Connect IQ mobile app or Garmin Express to enter sensor IDs into the TubeWitch settings. See screenshot and tips below.   Tips:  ● First, use the SRAM or Schwalbe mobile app to assign the F/R position and pressure target for each sensor.  ● Install TubeWitch then reboot your Garmin device and restart the Garmin Connect IQ mobile app.  ● On a Garmin device, add the TubeWitch Data Field to a data screen and LEAVE VISIBLE.  ● In the Connect IQ mobile app, go to the TubeWitch settings and enter the numeric part (#####) of your sensor IDs. Find ID's printed on the sensors or in the SRAM or Schwalbe mobile app.  ● Rotate your wheels to wake up the sensors.  ● During setup, you may see the message “Sensor uses an open connection.” This is normal and means the sensors do not send data using encryption.  ● If data is not displayed after setup, reboot to trigger the messages again; they must be acknowledged before data can be received.  ● To avoid conflicts, uninstall any other TyreWiz Data Fields, then reboot your Garmin.  ● **** When changing settings with the Connect IQ app, TubeWitch MUST BE VISIBLE on your Garmin.  ● **** Try using Garmin Express if the Connect IQ mobile app fails to save settings. *****   FAQs:  ● Is it accurate? Yes, it matches the manufacture's mobile apps  ● Will it work with TyreWiz 2.0, TyreWiz Moto or Zipp wheel sensors? Yes  ● Why is it showing a "?" or "X" next to the pressure reading? "?" indicates you are not getting data from the sensor and it's trying to reconnect. "X" indicates TubeWitch timed out for that sensor and stopped searching to save battery (Default 15 min timeout).  ● Will it work for more than two sensors? Yes. Save up to five named bikes or wheel sets. Then either manually select the active sensor set in settings, choose Auto to scan each configured sensor set for 10s, or use the Touch to Switch feature. Only one sensor set can be connected and displayed at a time.  ● Will it record tire pressure data to the Garmin activity? Yes  ● Does the TubeWitch Data Field offer features that the SRAM Data Field doesn't have? Yes, it adds audible/pop up alarms, labels, colors, stale data indicators, and more.   Search terms: TubeWitch, Tube Witch, TyreWiz, Tyre Wiz, TireWiz, Tire Wiz, Whiz, TyreWitch, Tyre Witch, TireWitch, Tire Witch, Moto, Zipp, Schwalbe AIRMAX, TPMS, Quarq TubeWitch is an independent third-party Garmin Connect IQ data field and is not affiliated with, endorsed by, or sponsored by Garmin, SRAM, or TyreWiz. All trademarks are the property of their respective owners.

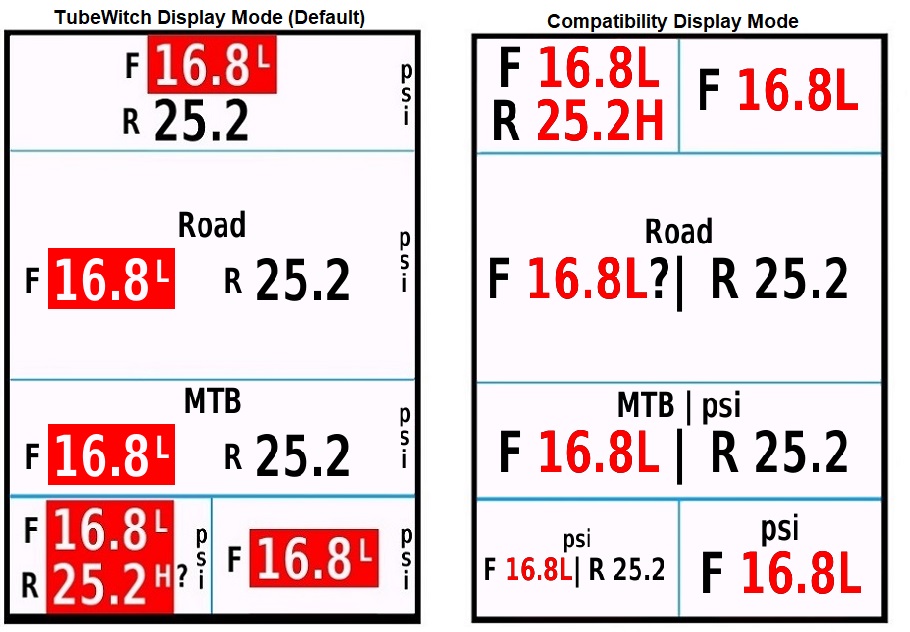

Version 1.27 - Fixed Edge 1040 minimum firmware requirement bug Version 1.26 - Added Garmin Edge 1060 support. Version 1.25 - Supports new Garmin devices, optional alarm repeats, and Touch to Stop Alarm Repeats. Improved stability. Version 1.24 - Now supports Schwalbe AIRMAX, fixed lighted watch alerts, better vibration, fixed Garmin field restart bug, added new Garmin devices, records to SRAM web, improved stability. Version 1.22 - Supports more devices. Version 1.21 - Alert Vibration for watches. Version 1.20 - Layout Orientation, Background Color, Label Delimiter, Sensor Timeout, Touch to Disable. Fixed background color on watches. Version 1.10 - Watch support, Averages and sensor set name saved to Connect IQ, Up to 5 sensor sets, Touch to switch, Enable\disable F\R sensor, Display Compatibility Mode   If upgrading, reboot your Garmin device and restart your Garmin Connect IQ mobile app to comlpete the update.   SETTINGS: ACTIVE SENSOR SET  ● Choose which Sensor Set is shown in the Data Field. Manually select the active set or use Auto to scan configured sets every 10s. If you only have one set, Auto is not recommended.   SENSOR SET #1-5  ● Sensor Set Name - (Will be shown in Connect IQ stats)  ● Enabled Sensors - F/R or both  ● Front and Rear TyreWiz sensor IDs. (Enter only the numeric part of the sensor id, #####. Find the sensor ID printed on the sensors or in the mfg's mobile app.)  ● Front and Rear Notes (Only visible in settings)   UNIT OF MEASURE DISPLAY  ● Unit of measure (PSI, kPa or BAR) - Garmin reboot required  ● Decimal Places - Number of digits to the right of the decimal. This can cause labels to be truncated.  ● Show Unit of Measure   SENSOR LABELS  ● Show Front/Rear Labels in the Data Field  ● Show Sensor IDs in the Data Field (May be truncated)  ● Show Sensor Set Name in the Data Field (May be truncated)  ● Label Delimiter used on horizontal layouts   DISPLAY  ● Display Style Mode - TubeWitch Mode (Default) may be unavailable on some devices that are not yet fully supported. Compatibility Mode uses dynamic sizing/positioning and works on all devices.  ● Layout Orientation - Auto, Vertical or Horizontal  ● Backgroud Color - Auto, Light or Dark   TOUCH SETTINGS  ● Allows tapping the field to Switch Sensor Sets, Disable TubeWitch, Rescan after timeout and Touch to Stop Alarm Repeats.   SENSOR TIMEOUT  ● Timeout in Minutes (Default 15 min) - During an activity, TubeWitch times out if no sensors are found. Will not timeout if an activity is not started.   AUTO SWITCH SCAN DELAY  ● Delay in Seconds (Default 60s) - If both sensors disconnect while Active Sensor Set = Auto, TubeWitch waits for this delay before scanning other sets (10s each).   HIGH/LOW PRESSURE ALARMS  ● Audible Alert (Not all watches)  ● Pop Up Alert (Newer devices only)  ● Vibration Alert (Watches only)  ● Set how many seconds a tire must be High/Low before triggering an alarm  ● Set how many seconds a tire must be within target before resetting the pressure alarm  ● Set how many times alarm will repeat (90 seconds apart)  ● Audible Alarm Tone  ● Data Field Alarm Box\Font Color (Color change is always active and always instantaneous)   ACTIVITY RECORDINGS (Garmin reboot required after making recording changes)  ● Record Pressure  ● Record Pressure Alarm Status  ● Record Pressure Stale Data Indicator  ● Record Sensor Set # Used   TUBEWITCH LABS  ● Sensor Compatibility Mode - Enable if sensors cannot connect or their F/R position or pressure targets are not set in the SRAM or Schwalbe App. More Info: TubeWitch.com
