Description

This widget displays the current position and path of the sun through the sky, as well as sunrise, sunset and solar noon times. This is of interest to photographers and solar power professionals. # Features * 2D azimuth and altitude angle plot of the sun path at your location * Shows current sun position relative to your location (solid circle) * Current sun azimuth angle shown as a dotted radial line (orange during the day, blue during twilight period) * Shows sunrise, sunset time (12/24 hour format) * Shows solar noon time (12/24 hour format) * Shows current period (day, civil twilight, nautical twilight, astronomical twilight, or night) based on sun altitude angle * Option to show south at the top of the plot (useful for locations in northern hemisphere) * Directional compass indicator (when a GPS signal is available) # Usage The azimuth angle compass bearing of the sun measured clockwise from north. For example, an azimuth angle of 90 degrees, means that the sun is due east relative to your position. The altitude angle is the angle above the horizon of the sun. For example, an altitude angle of 0 degrees means that the center of sun is directly on the horizon. An altitude angle of 90 degrees means that the sun is directly over your head. The 2D azimuth and altitude angle plot of the sun path is in spherical co-ordinates. The polar angle represents the azimuth angle of the sun, and the concentric circles growing inward represent the elevation angle (0 deg to 80 deg are drawn). Therefore, the closer the sun is to being directly over your head (altitude angle of 90 degrees) the closer the sun position marker is to the center of the plot. See here for more detail: https://www.timeanddate.com/astronomy/horizontal-coordinate-system.html See here for more info on sun path diagrams: https://sustainabilityworkshop.venturewell.org/node/1515.html Solar noon occurs when the altitude angle has reached the highest point for the day. At this point, the azimuth angle is either 180 (due south) if you are in the northern hemisphere or 0 (due north) if you are in the southern hemisphere. This is the horizontal center of the plot. # PRO Version Features * Shows 2D azimuth and altitude angle plot of the sun path for summer and winter solstice * Numerical display of current azimuth and altitude angles * Shows sun position at the top of each daylight hour (open circle) * Current sun azimuth angle during the night shown as a grey dotted radial line * Specify a custom location. To use this, enable the "Use custom lat/long position" setting, enter values in decimal degrees for the custom latitude and longitude values, and set the UTC offset for the new position. This will display the sunset, sunrise and solar noon times in the local time of the new position. * Displays daylight hours, solar time, moon phase, moon illumination %, moonrise and moonset times # Payment For the PRO version, use this link to pay US$1.98 via Stripe (no account required; credit card, Apple Pay, Google Pay accepted). https://buy.stripe.com/28o01F4fW7sN5os9DC 如需通过微信或支付宝付款，请使用此链接：https://buy.stripe.com/28o01F3bScN7bMQ9ES Alternative payment via Paypal: https://www.paypal.com/paypalme/trudelta/1.98USD Important instructions to get your unlock code quickly: https://ko-fi.com/post/Payments-via-PayPal-Z8Z6AIK78 Payment via Stripe is recommended because you will get your unlock code immediately on the payment confirmation screen. If you don't get a reply within 8 hours, see here for help: https://ko-fi.com/post/Common-causes-for-not-receiving-your-unlock-code-N4N8BUEGH

What is new

Version 0.17.0 Rebalanced computational load. This is a mandatory update. Previous versions of the app will not work. Please update to this version for continued operation. Version 0.16.3 Added support for the D2 Mach 2. Version 0.16.2 Added support for Venu 4 models. Version 0.16.1 Added support for the Fenix 8 Pro. Version 0.16.0 PRO version only changes: Corrected moonrise time. Added missing display of moonset time. Version 0.15.0 Improved performance. This is a required functional update. Version 0.14.12 Added support for the Venu X1. Version 0.14.11 Added support for Forerunner 570/970 models. Version 0.14.10 Added support for the Vivoactive 6. Version 0.14.9 Added support for the Descent G2. Version 0.14.8 Added support for Approach S50/S44. Version 0.14.7 Added support for Instinct 3 AMOLED models. Version 0.14.6 Added support for Enduro 3 and Fenix 8 models. Version 0.14.5 Added support for Forerunner 165 models. Version 0.14.4 Added support for the Descent Mk3 43mm models. Version 0.14.3 Added support for the Fenix 7 Pro Solar. Version 0.14.2 Added support for the Descent Mk3 model. Version 0.14.1 Added support for the Fenix 7X Pro Solar. Version 0.14.0 Improved reliability of data updates. Version 0.13.2 Added support for Vivoactive 5. Version 0.13.0 PRO version only changes: Added display of local solar time. Corrected moon illumination value. Added missing moon phase display when moon always visible. Corrected missing parentheses in the moon phase description for some watch models. Version 0.12.2 Added support for Epix 2 PRO and Fenix 7 PRO models. Version 0.12.1 Added support for Approach S70. PRO Version only change: Corrected moon rise/set times in situations when the moon never sets or has already risen before the start of the day. Improved page switching response time. Version 0.11.0 PRO Version only change: Corrected moon rise/set times Version 0.10.0 Added compass direction indicator when GPS is available to provide orientation. Version 0.9.0 PRO version only change: Added 2nd page of data showing sunlight hours and moon information.

Screenshots

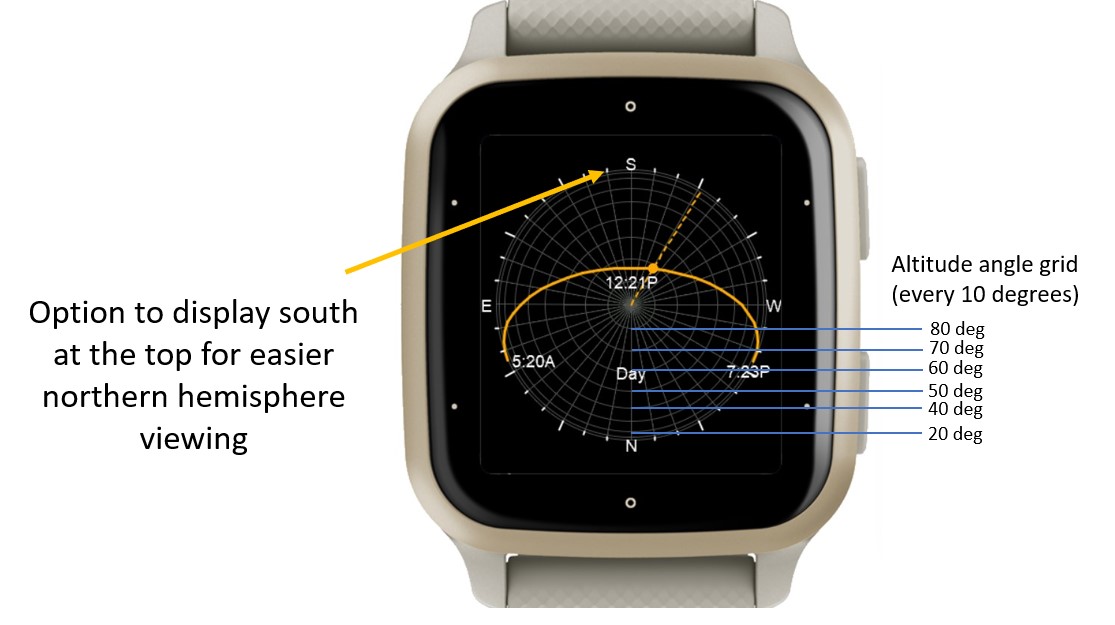

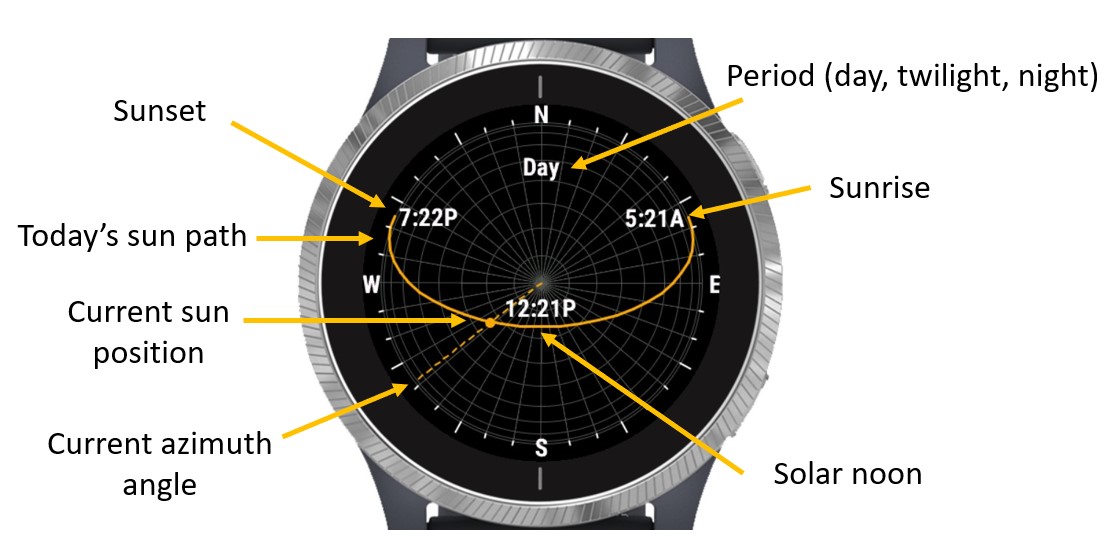

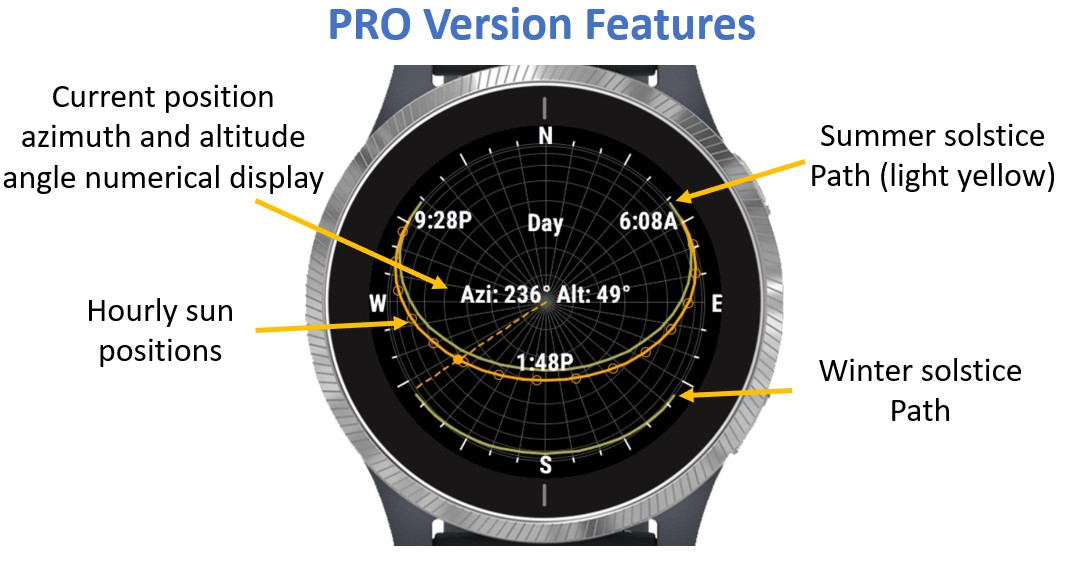

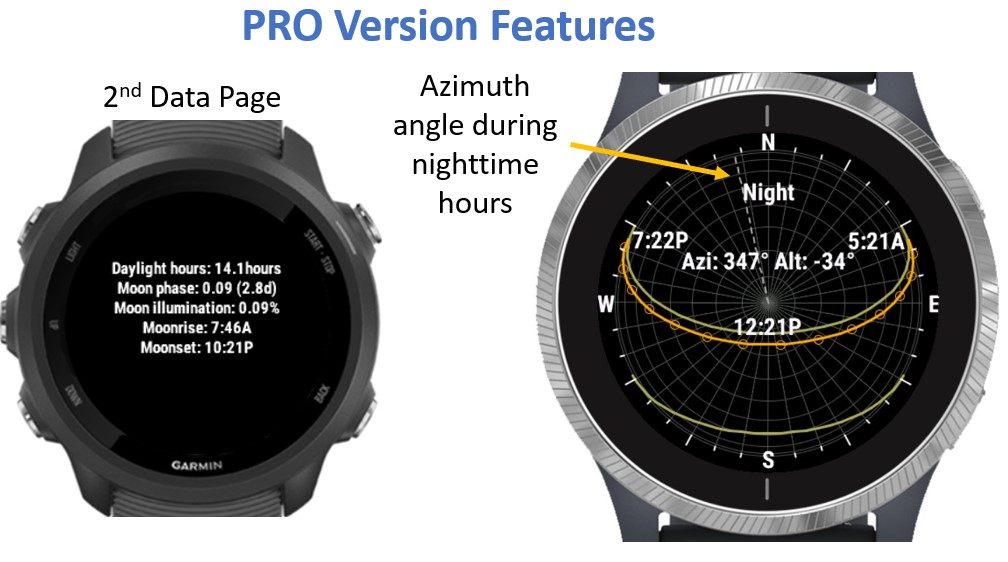

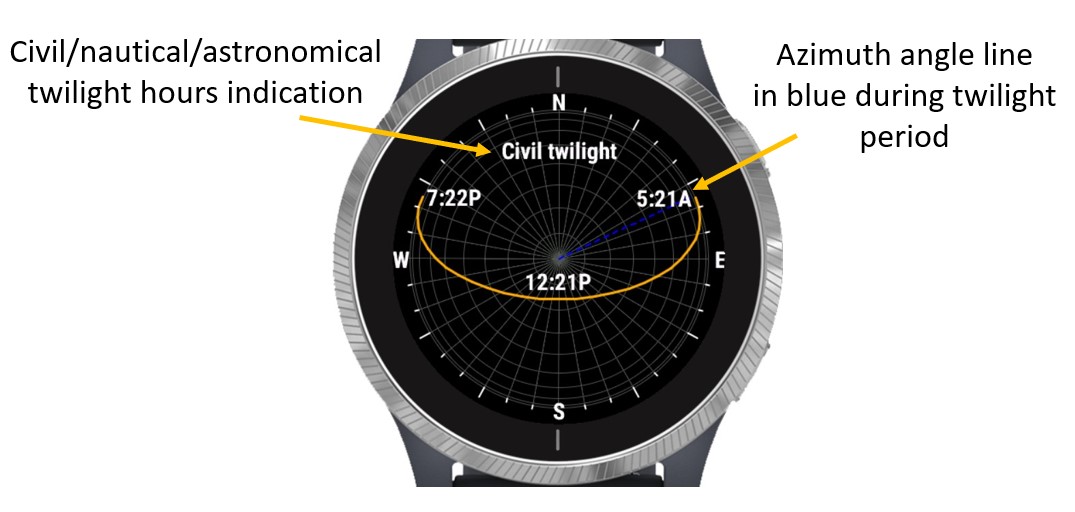

Sun Path Widget · Screenshot 0 Sun Path Widget · Screenshot 1 Sun Path Widget · Screenshot 2 Sun Path Widget · Screenshot 3 Sun Path Widget · Screenshot 4

Supported languages (4)

English 日本語 Русский 简体中文

Compatible devices (218)

Approach® S50 Approach® S60 Approach® S60 Approach® S62 Approach® S62 Approach® S70 (42mm) Approach® S70 (47mm) Approach® S72 - 43 mm Approach® S72 - 47 mm Captain Marvel Captain Marvel D2™ Air D2™ Air X10 D2™ Air X15 D2™ Charlie D2™ Charlie D2™ Delta D2™ Delta PX D2™ Delta PX D2™ Delta S D2™ Mach 1 D2™ Mach 1 Pro D2™ Mach 2 D2™ Mach 2 Pro Darth Vader™ Darth Vader™ Descent™ G2 Descent™ Mk1 Descent™ Mk1 Descent™ MK2 Descent™ MK2 Descent™ Mk2S Descent™ Mk2S Descent™ MK3 - 43mm Descent™ MK3i - 51mm Enduro™ Enduro™ Enduro™ 2 Enduro™ 3 Enduro™ 4 epix™ (Gen 2) epix™ (Gen 2) epix™ Pro (42mm) epix™ Pro (47mm) epix™ Pro (51mm) fēnix® 5 fēnix® 5 fēnix® 5 Plus fēnix® 5 Plus fēnix® 5S fēnix® 5S fēnix® 5S Plus fēnix® 5S Plus fēnix® 5X fēnix® 5X fēnix® 5X Plus fēnix® 5X Plus fēnix® 6 fēnix® 6 fēnix® 6 Dual Power fēnix® 6 Pro fēnix® 6 Pro fēnix® 6 Pro Dual Power fēnix® 6 Pro Solar fēnix® 6 Solar fēnix® 6S fēnix® 6S fēnix® 6S Dual Power fēnix® 6S Pro fēnix® 6S Pro fēnix® 6S Pro Dual Power fēnix® 6S Pro Solar fēnix® 6S Solar fēnix® 6X Pro fēnix® 6X Pro fēnix® 7 fēnix® 7 fēnix® 7 Pro fēnix® 7 Pro – Solar Edition (No Wi-Fi®) fēnix® 7S fēnix® 7S fēnix® 7S Pro fēnix® 7X fēnix® 7X fēnix® 7X Pro fēnix® 7X Pro No Wi-Fi fēnix® 8 AMOLED (43mm) fēnix® 8 AMOLED (47mm/51mm) fēnix® 8 Pro fēnix® 8 Solar (47mm) fēnix® 8 Solar (51mm) fenix® 9 - 43 mm fenix® 9 – 47 mm fenix® 9 Pro - 43 mm fenix® 9 Pro - 47 mm fenix® 9 Pro - 51 mm fenix® 9 Pro - Solar 47 mm fenix® 9 Pro - Solar 51 mm fēnix® Chronos fēnix® Chronos fēnix® E First Avenger First Avenger ForeAthlete 245 ForeAthlete 245 Music ForeAthlete 55 ForeAthlete 645 ForeAthlete 645 Music ForeAthlete 745 ForeAthlete 935 ForeAthlete® 735XTJ Forerunner® 165 Forerunner® 165 Music Forerunner® 170 Forerunner® 170 Music Forerunner® 245 Forerunner® 245 Forerunner® 245 Music Forerunner® 245 Music Forerunner® 255 Forerunner® 255 Music Forerunner® 255S Forerunner® 255S Music Forerunner® 265 Forerunner® 265S Forerunner® 55 Forerunner® 55 Forerunner® 570 - 42mm Forerunner® 570 - 47mm Forerunner® 645 Forerunner® 645 Music Forerunner® 70 Forerunner® 70 Forerunner® 735XT Forerunner® 735XT Forerunner® 745 Forerunner® 935 Forerunner® 945 Forerunner® 945 Forerunner® 945 LTE Forerunner® 955 Dual Power Forerunner® 965 Forerunner® 970 Instinct® 3 – 45 mm, AMOLED Instinct® 3 – 50 mm, AMOLED MARQ® (Gen 2) MARQ® Adventurer (Gen 3) MARQ® Commander (Gen 2) – Carbon Edition MARQ™ Adventurer MARQ™ Adventurer MARQ™ Athlete MARQ™ Athlete MARQ™ Aviator MARQ™ Aviator MARQ™ Aviator (Gen 2) MARQ™ Captain MARQ™ Captain MARQ™ Commander MARQ™ Commander MARQ™ Driver MARQ™ Driver MARQ™ Expedition MARQ™ Expedition MARQ™ Golfer MARQ™ Golfer Mercedes-Benz Venu® Mercedes-Benz Venu® Mercedes-Benz Venu® 2 Mercedes-Benz Venu® 2 Mercedes-Benz Venu® 2S Mercedes-Benz Venu® 2S quatix® 6 quatix® 6X Rey™ Rey™ tactix® 7 tactix® 7 – AMOLED Edition tactix® 8 – 47 mm, AMOLED tactix® 8 – 51 mm, Solar Venu® Venu® Venu® 2 Venu® 2 Venu® 2 Plus Venu® 2 Plus Venu® 2S Venu® 2S Venu® 3 Venu® 3S Venu® 4 – 41 mm Venu® 4 – 45 mm Venu® Sq. Venu® Sq. Venu® Sq. Venu® Sq. Venu® Sq. 2 Venu® Sq. 2 Music Venu® Sq. Music Venu® Sq. Music Venu® Sq. Music Venu® Sq. Music Venu® X1 vívoactive® 3 vívoactive® 3 vívoactive® 3 vívoactive® 3 Mercedes-Benz® Collection vívoactive® 3 Mercedes-Benz® Collection vívoactive® 3 Music vívoactive® 3 Music vívoactive® 3 Music vívoactive® 4 vívoactive® 4 vívoactive® 4S vívoactive® 4S vívoactive® 5 vívoactive® 6 vívoactive® HR vívoactive® HR
