Description

This watchface is intended for diagnosing problems with always on display and always on seconds modes. The cumulative number of display updates in low power mode, high power mode, and always on seconds modes is displayed. The flicker test mode allows for checking possible display flickering due to display brightness or AOD pixel reduction mask. The % of on pixels (should usually be 10% or less) and brightness can be set. If you are seeing flicker during AOD display mode, note the LO: # count before entering AOD, and then exiting AOD. The value should only increase by 1 or 2. For example if the display flickers 10 times, and the LO count increased only by 1 or 2 then it indicates a Garmin software or hardware problem. If the LO count increased by 10 or so, then this indicates a Garmin software problem.

What is new

See here for latest progress on the display flickering problem: https://ko-fi.com/post/AOD-Mode-Flickering-Fix-P5P010P939 Version 1.3.3 Added support for the D2 Mach 2. Version 1.3.2 Added support for new models. Version 1.3.1 Added support for new models. Version 1.3.0 Allowed for 2 different AOD mask options for further testing of the effect of the AOD mask. Version 1.2.0 Changed the brightness test mode setting to be called flicker test mode. Added option to turn on/off the AOD mask to check for the effect of the mask on flickering. Added optional compensation setting for round screens to compensate for Garmin's calculation of % luminance for round screens. Version 1.1.0 Added brightness test mode to test for possible connection between display brightness and flickering. Fixed crash on Venu Square 2 series. Removed extranneous setting.

Screenshots

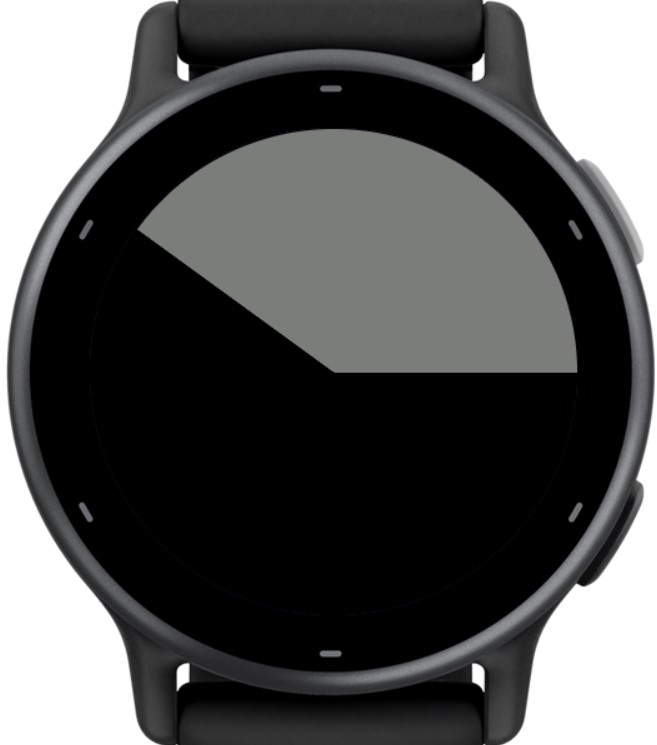

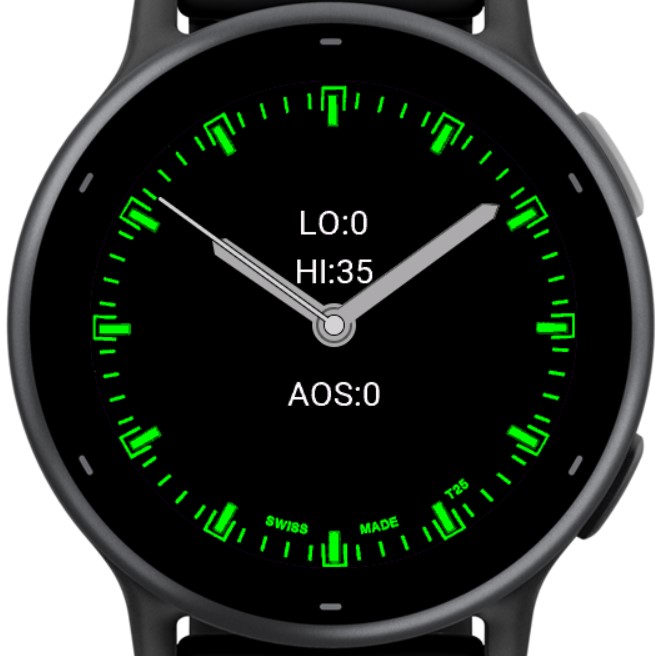

AOD/AOS Test · Screenshot 0 AOD/AOS Test · Screenshot 1
